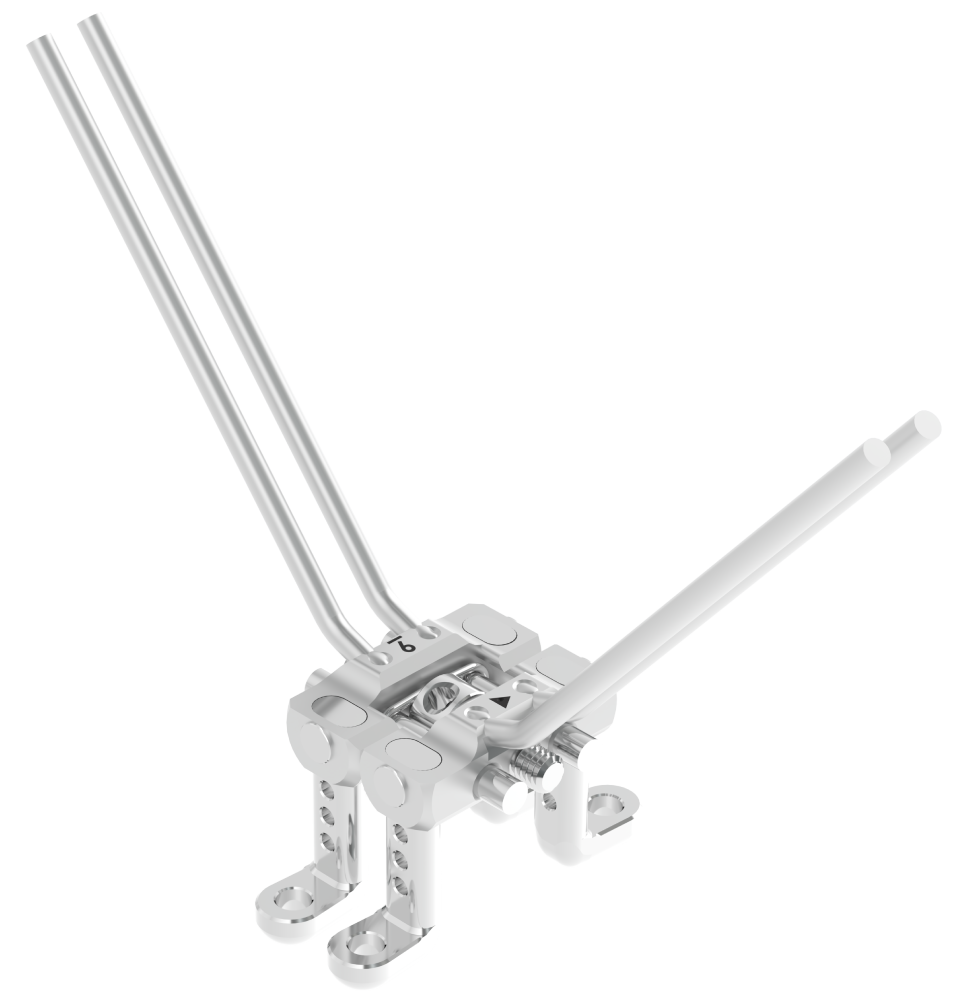

- The EX Disjunction Appliance is positioned on the patient’s palate and skeletally anchored using four HS MARPE mini-implants, which are installed through through-holes in the height-adjustable L-shaped bases.
- Adjusting the height of each foot individually will customize the appliance to the patient's palate, adapting it to deep palates or severe atresia.
- Recommended for adolescents, young adults, and adults with severe atresia.
- It comes with a circuit breaker expansion wrench.
- Made of stainless steel.
- Autoclavable.

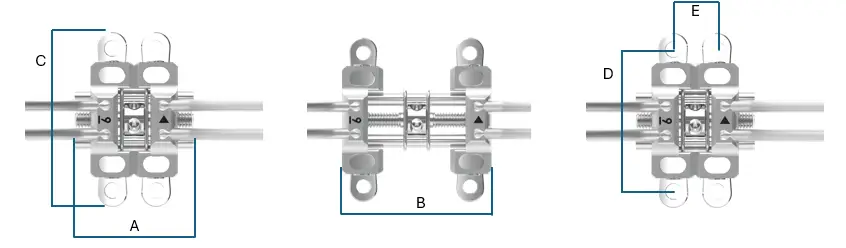

| Code | Model | Closed (A) | Open (B) | Length (C) | Possible longitudinal distances between mini-implants (D) | Transverse distance between mini-implants (E) | Number of activations |
|---|---|---|---|---|---|---|---|
| 5509 | 9mm | 15 mm | 20 mm | 22.5 mm | 18.2 mm | 5.6 mm | 45 activations |
| 5512 | 11 mm | 17 mm | 22 mm | 55 activations | |||
| 5506 | 13 mm | 19 mm | 24 mm | 65 activations |
